Services

Electrical System Design

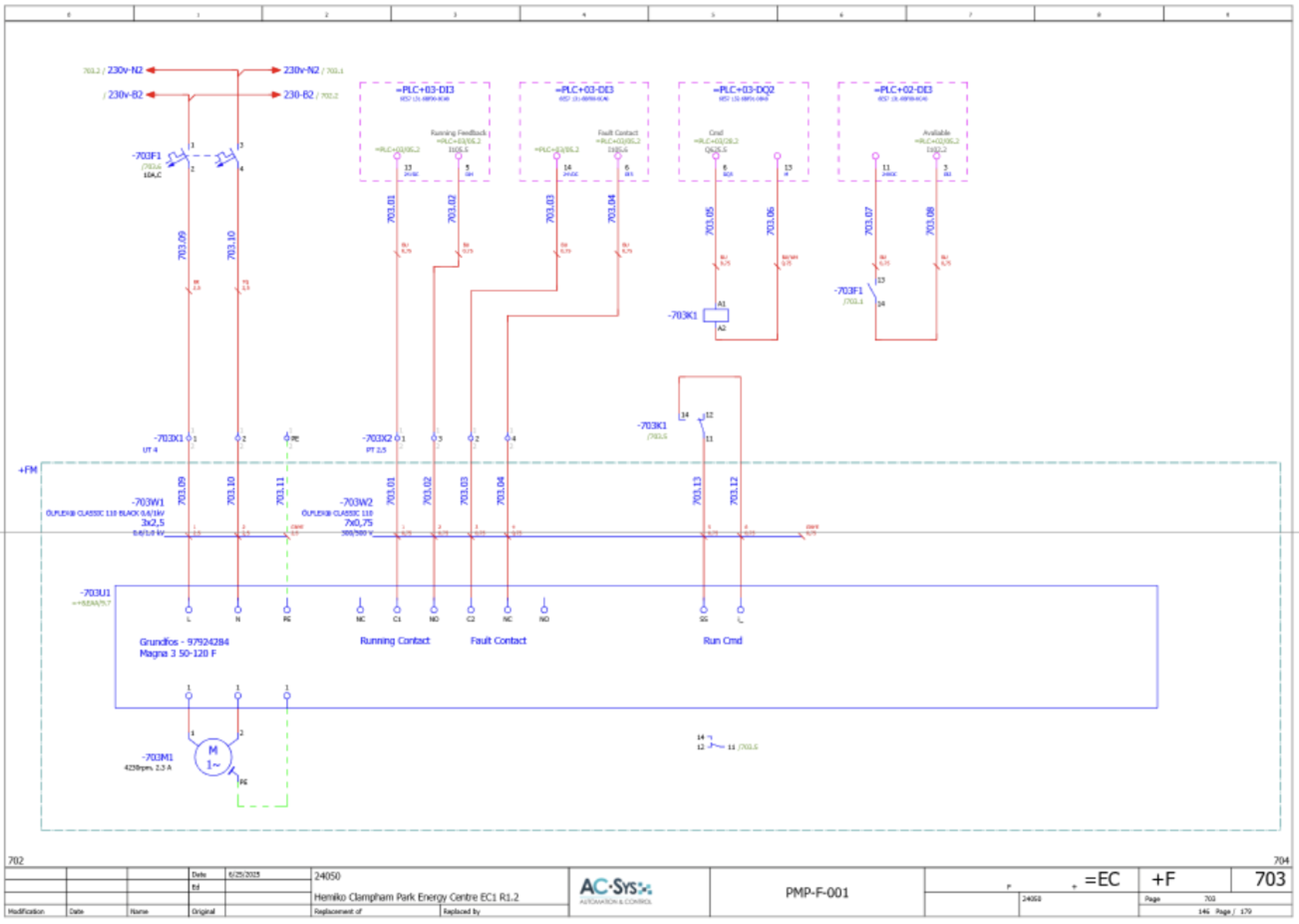

At AC Sys we pride ourselves on creating carefully engineered system designs that form the solid technical foundation for every project. Our detailed, designs include schematic and wiring diagrams, PLC I/O and safety evaluations, full bill of materials and cable schedules.

Learn More



Straight-talking engineering

AC-Sys provide Straight-talking engineering with a warm smile: plain language, honest guidance, and dependable support—always here when you need it.



Honest and reliable

AC-Sys will always be honest and reliable, providing a transparent solution with unwavering integrity and proven expertise—your dependable engineering partner for every project.



Putting your goals first

AC-Sys all you to realise the full potential of your automation projects with a truly unbiased partner. As an independent systems integrator - we put your goals first free from vendor agendas, hidden fees, or red tape.



Proven track record

AC-Sys combine years of proven expertise with high technical skills, we deliver precision-engineered solutions you can trust—every time.

Design

Electrical Design

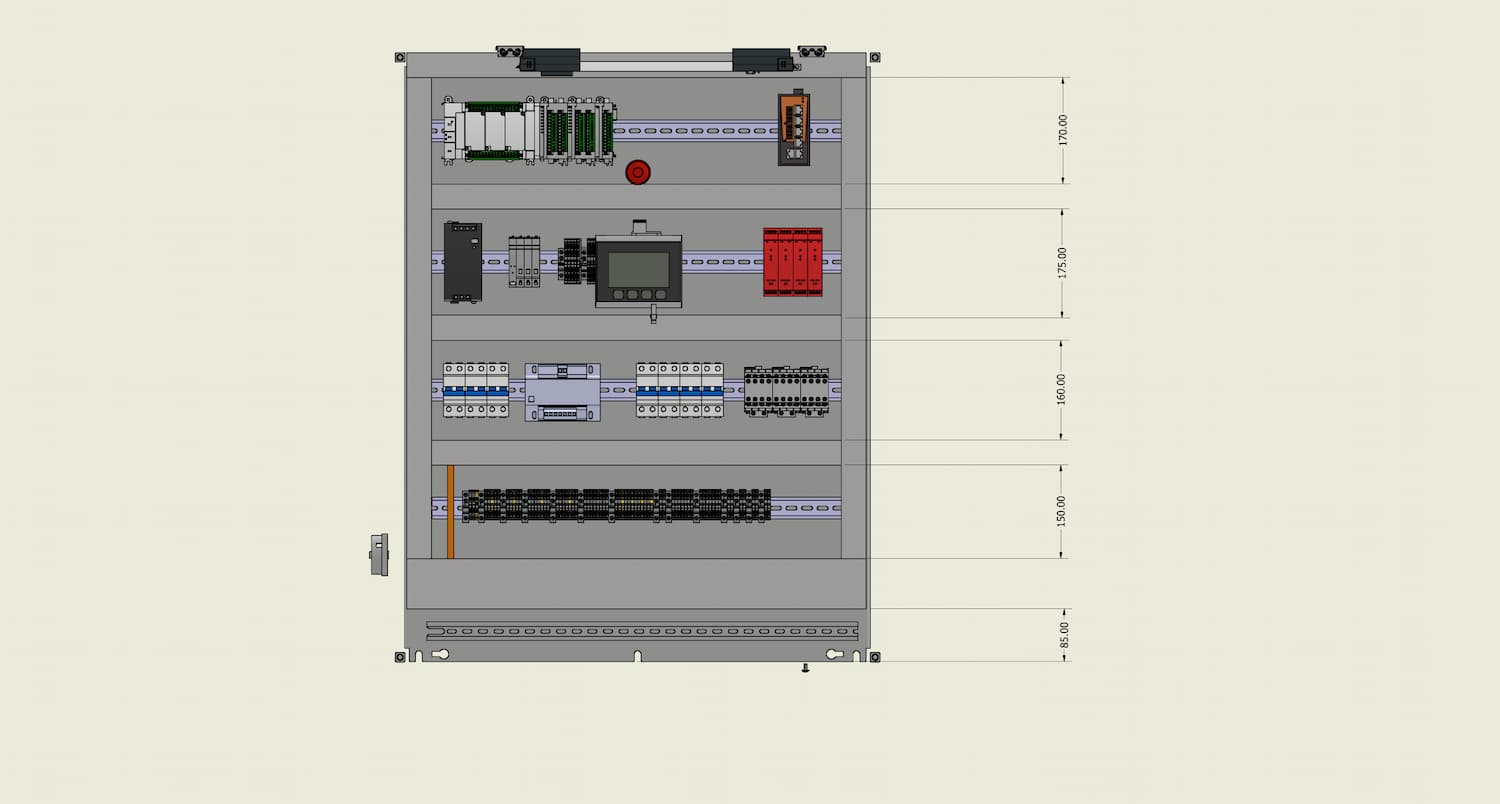

Our experience allow us to produce 3D panel and enclosure designs produced in EPLAN or AutoCAD to validate component fit, cut outs, wiring routes and cooling clearances.

We specify tried and tested, industry proven components and design for reliability, redundancy and maintainability, with manufacturability, EMC mitigation, IP rating and thermal management built into every assembly. Deliverables are structured to support procurement, fabrication, factory acceptance testing, and straightforward onsite installation, commissioning, maintenance and future modification.

Our Aim

How We Help

We aim to produce detailed and concise designs and to deliver panels ready for service.

E-Plan Electrical P8
AutoCAD Electrical
AC-Sys Ensure functional segregation of control, power, and safety circuits for safety and maintainability.
Select components based on load, fault level, and environment, applying derating where needed.
Use clearly identified, component and cable marking.
Maintain protective earth continuity and proper bonding throughout.
Integrate safety circuits and interlocks per ISO 13849, with validated documentation.
Provide comprehensive schematics, cause/effect matrices, and signed validation registers.
Design enclosures fit for purpose.

Get started

Talk to us about your project

No obligation
Takes 15 minutes
Friendly advice

Get In Touch

Happy Customers

Testimonials

We're proud to work long term with a wide range of clients. Find out what they've said about us.

Project Manager

“We would like to express our sincere appreciation for AC-SYS and the exceptional work they have delivered across our previous projects. Their professionalism, technical expertise, and consistent commitment to quality have played a vital role in the success of our collaborations. AC-SYS has demonstrated a deep understanding of our requirements, often going above and beyond expectations to ensure timely and efficient delivery. We truly value the partnership and look forward to continuing our successful collaboration on future initiatives.”

Design Engineer

“AC-Sys Ltd has over the years and many projects delivered, demonstrated a consistent commitment to understanding and deploying client requirements on a wide range of specialist and challenging control integration projects. Their extensive knowledge and attention to delivering a quality project on time and within budget makes AC-Sys Ltd a reliable partner to deliver both small and large bespoke / complex projects in a wide range of industrial engineering sectors.”

Managing Director

As a mechanical engineering company, we frequently depend on specialist subcontractors for electrical works. AC-Sys has proven to be an dependable partner who are highly responsive, and consistently clear in their communication. They’ve supported us across multiple projects and deliver industrial panels to suit the project budget without compromising quality. What we value most is their clarity, AC-Sys explains complex control logic and safety protocols in a way our team can understand, enabling smoother coordination and confident handover.
